Matching activity in Data Quality Services in action!

In this post, we’ll see matching activity in action. For the demo purpose, I’ll be using Data-Sets that I’ve found via Movies Sample & EIM tutorial .

Situation 1:

we’ve a list of movies and we want to identify “matching” movie titles.

Solution 1:

Create a Matching Policy

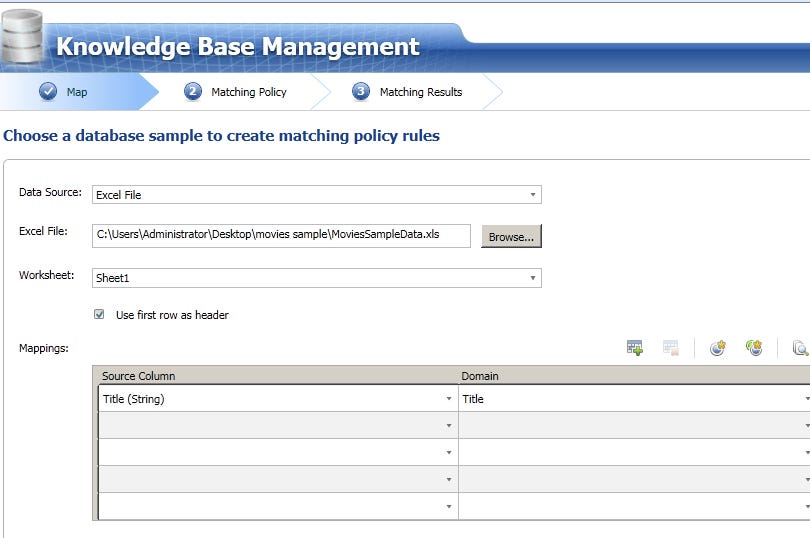

1) Mapping the Domains:

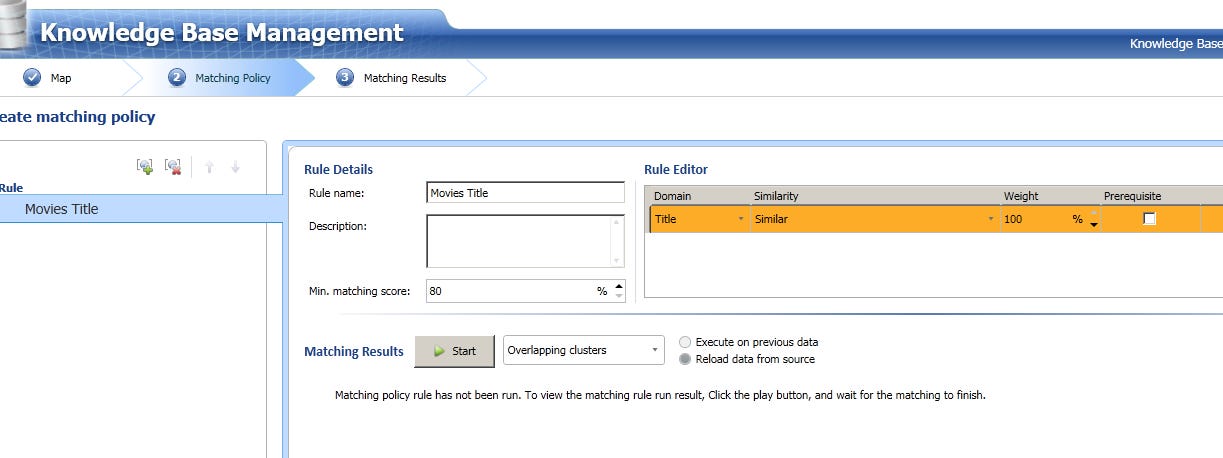

2) Configuring the Matching Policy:

Note: You can have Matching Rules on more than one domain. I used one domain for demo purposes.

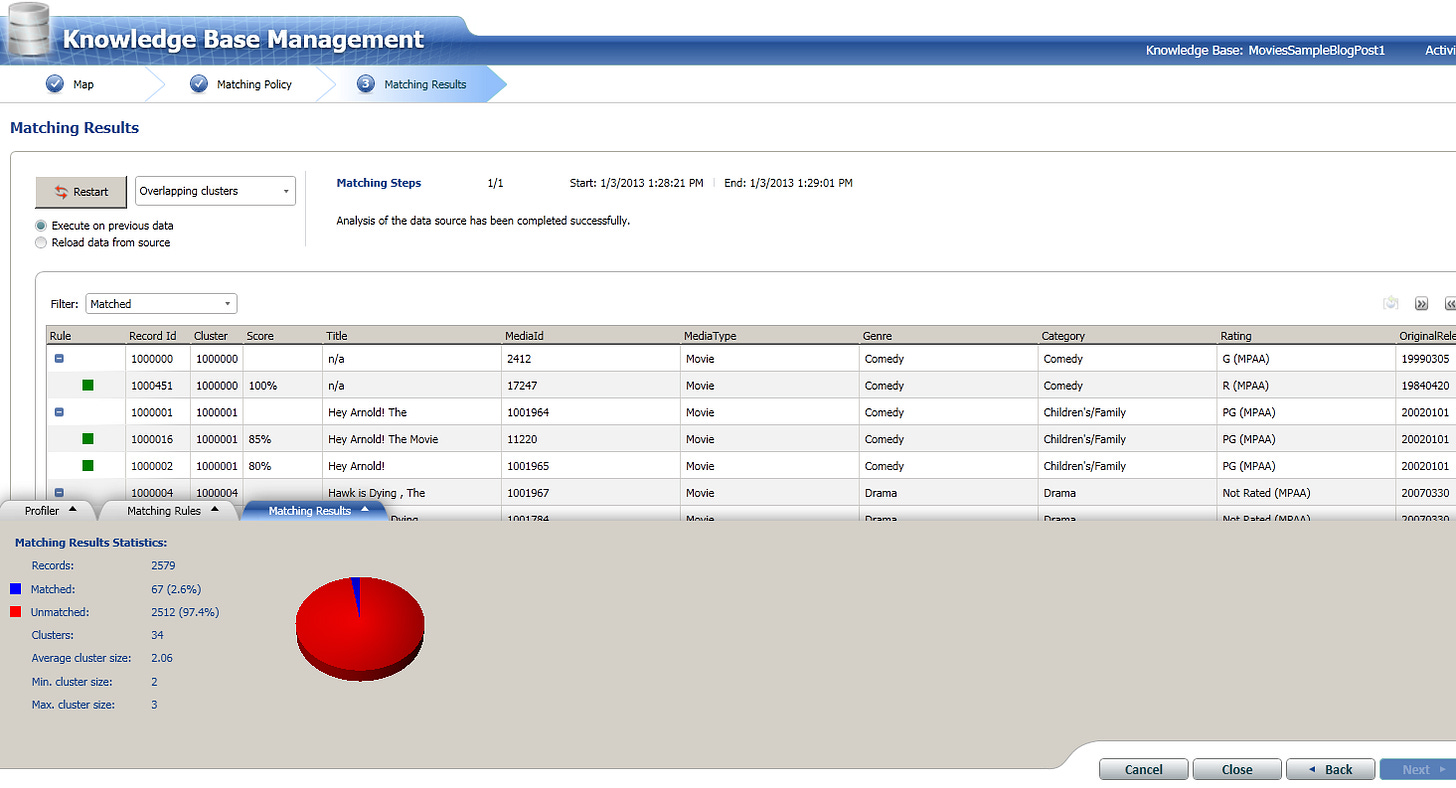

3) View Matching results:

4) Publish the KB (which stores the matching policy)

Once you have the matching policy, you can use this in a Data Quality Project:

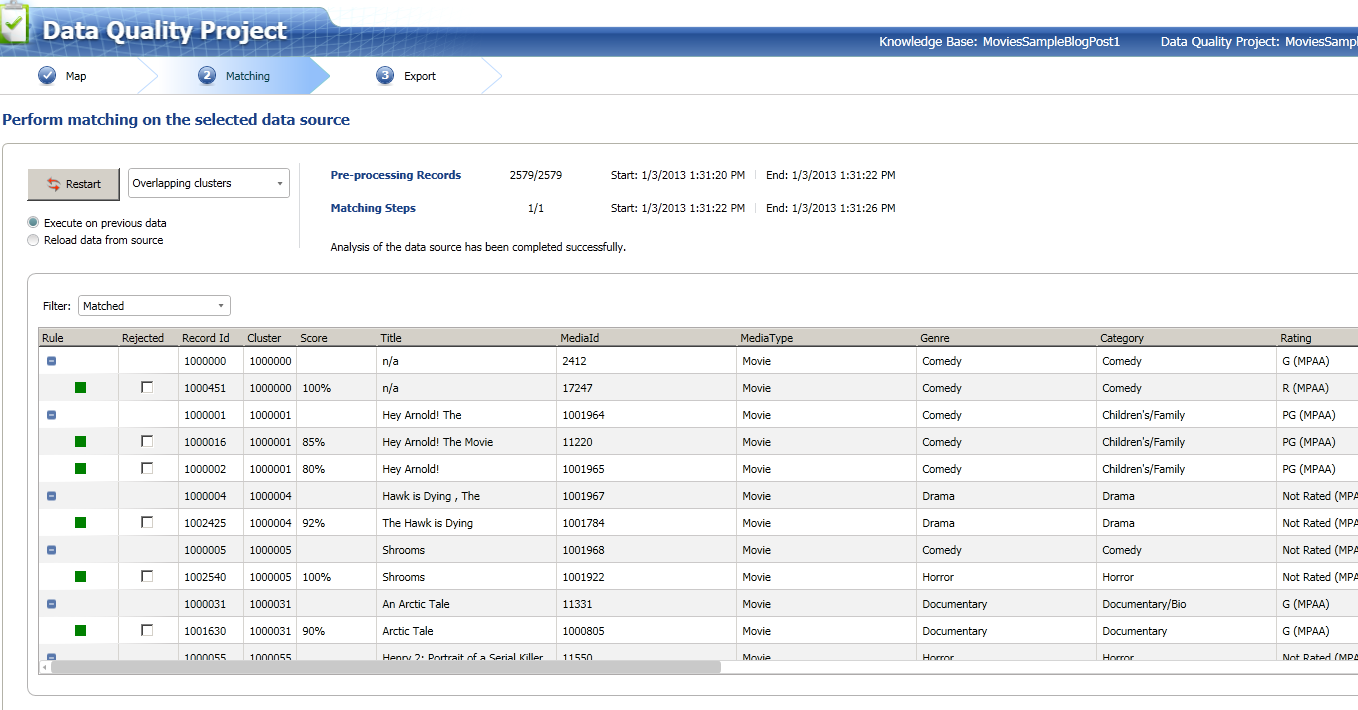

5) See How I ran a Data Quality Project (w/ matching activity) in the image below.

Note: You can export the clean data-set via Data Quality Project.

Situation 2:

we’ve a list of Supplier Names and we want to identify “matching” supplier names.

Note that in this situation, you would see how to use more than one domain to create a matching rule.

Solution 2:

Most of the steps would remain same as situation 1, But I want to show you Matching Policy & Matching Results

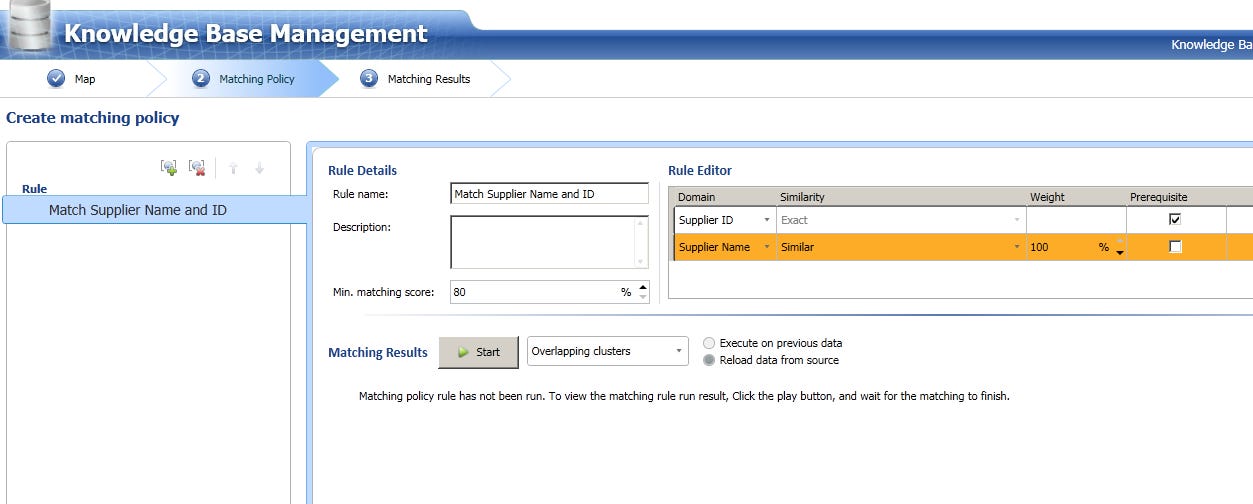

Matching Policy:

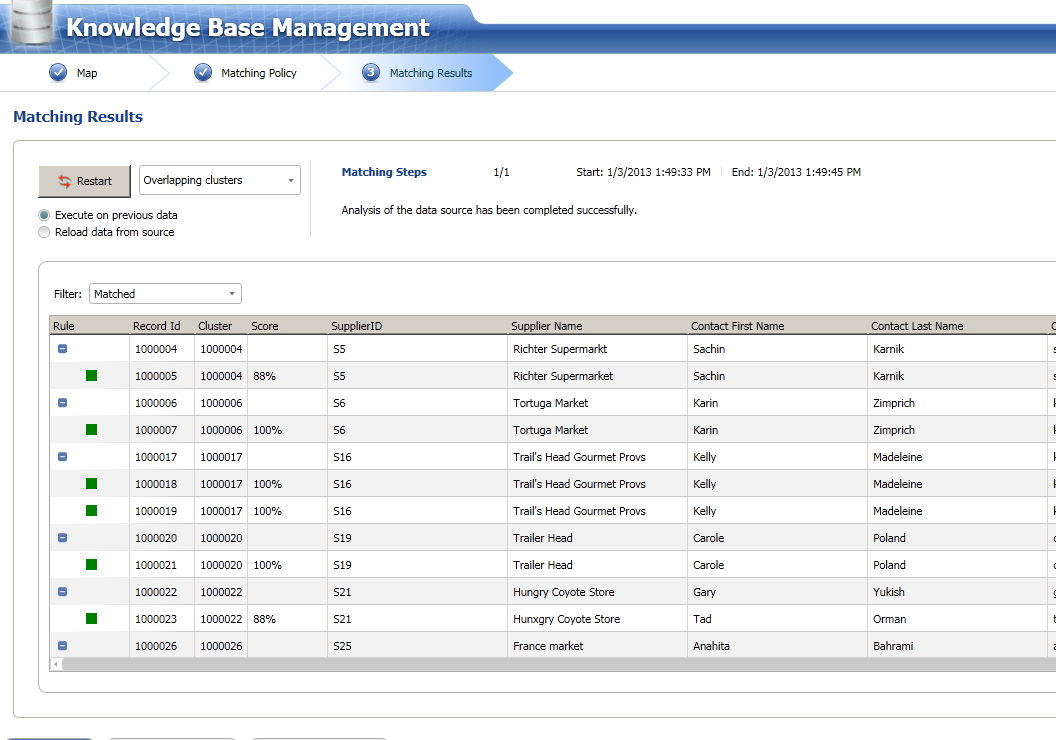

Matching results:

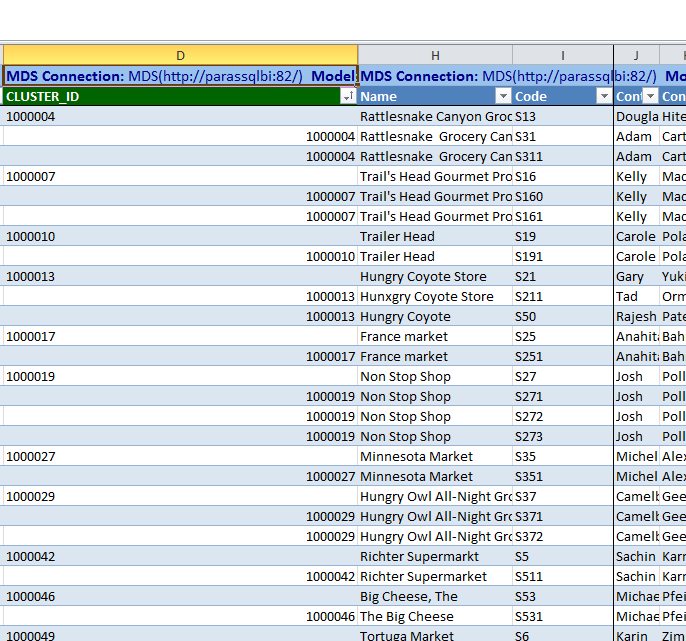

Also, I want to show that, the matching policy (DQS KB) that we created earlier can be used in Master Data Services too! For more details check out the resource: DQS, MDS & SSIS for EIM

Conclusion:

In this post, we saw how DQS can be used to clean “matching” records. For step by step tutorial, please refer to Movies Sample & EIM tutorial .
